OP-COM - PC based Opel diagnostic program
OP-COM is a PC based diagnostic program.

It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.


The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test, and supports remote, and key programming.

The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
Fault codes will be shown with all available information:

Full fault code text description
Full status information (Present, Not present, Intermittent)

You can print out, save, or copy the fault codes to any other application.
From the fault codes window, you can go directly to the measuring blocks window.
The program shows you measuring block information on many control module, you can choose anything from the list on your own. The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

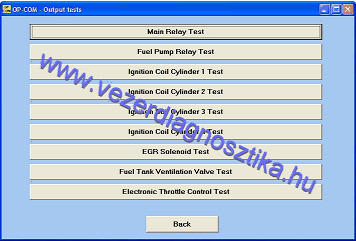

You can also run output tests on many controllers.
PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN  - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

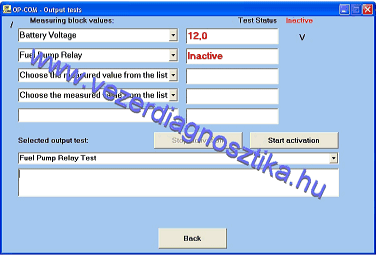

You will get a feedback on the state of the activated output. This will helps you to find the failed components more easily.
With OP-COM, you can learn keys to immobiliser, and remote keys to the central door locking, or alarm.
You can also reset, and program the following immobiliser related items: ECM, BCM, IPC.

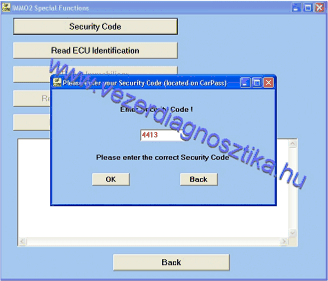

You will need the vehicle security code, which can be found
on the CAR-PASS.
You can also reset, and program the Service interval reminder on Astra-G, Zafira, Corsa-C, Meriva, Tigra-B
You can code SAB6, and SAB8 airbags with the software.
The diagnostic inteface is USB port based, so there will be NO COMPATIBILITY ISSUES, with serial to USB converters.
The speed of the communication over the USB-BUS is enough to handle the awesome speed of the High-Speed CAN-BUS systems, which is currently 500kbps. This is the main reason, why only the USB port based interface is available for CAN-BUS.

Compared to the TECH2, which is the dealers tool (with a 32 MB card+CANdi interface), the price of OP-COM is quite affordable.
Not to mention the free software updates, which can be downloaded from the internet.

OP-COM is under continous development, new version will be availabe approximately every 3-4 month.

The update is FREE, and can be downloaded from our website.
OP-COM is currently available at the following languages:

Hungarian (a widespread, and beautiful language too :) )
English
German
Turkish
Romanian
French
Danish
Portuguese
Slovakian

Also being translated to the following languages (will be available shortly):

Polish
Swedish
Spanish
Greek
Czech
The price of OP-COM is 750,- Euro + VAT + Shipping costs.
If you have questions, or need more information, do not hesitate to contact us:

Autó-M3 Kft.
1154 Budapest
Tompa Mihaly u. 76.

E-Mail: info@vezerdiagnosztika.hu


Phone: +36 30 670 10 42

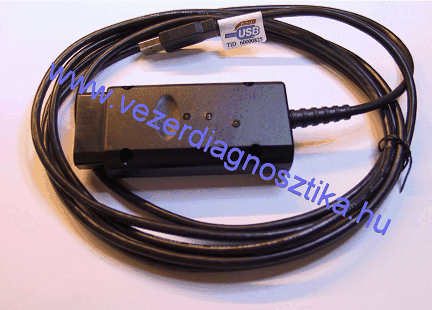

This is how the interface exactly looks like:
The package contains:

1 USB port based diagnostic interface, with 3 m long USB cable
1 CD-ROM which contains the latest program version
User's Manual can be found on the CD-ROM
Printed Instruction on Installing the USB driver.
Free Software upgrades, from our web-site
We usually ship your package with FedEX, or DHL.
